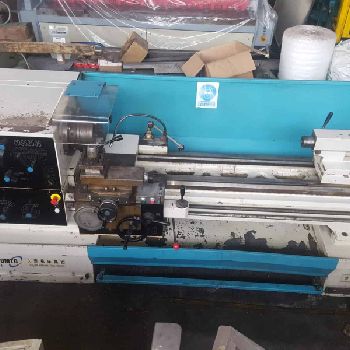

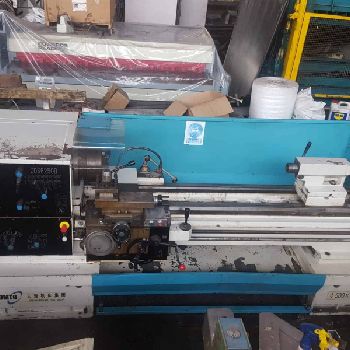

DMTG Cds6250b
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United Kingdom | Birmingham |
| Category: | Lathes |
| Manufacturer: | DMTG |
| Description: | PRODUCT NAME CDS6250B Swing over bed 500mm Swing over cross slide 290mm Height of centers 1130mm Swing in gap 760mm Gap length (from spindle nose) 280mm Distance between centers 750mm/1000mm/1500mm/2000mm/3000mm SPINDLE Spindle nose D8 Taper of spindle bore 90 mm / 1:20 Spindle center height 250mm Spindle bore 82mm No. of Spindle speed 16 Spindle speed ranges 26-2000 rpm Max torque of spindle 1000Nm Maximum spindle motor power 7.5 kW (10 HP) BED AND SLIDE Width over bedways 394mm Cross slide travel – X axis 348mm Travel of top slide 150mm Max. dimension of tool shank 25x25mm Cross feed 0.022-0.74mm/rev Longitudinal feed 0.044-1.48mm/rev Number of Imperial Pitches 47 Range of Imperial Pitches 7 / 16 – 80TPI Number of Diametric Pitches 47 Range of Diametric Pitches 7/8 – 160DP Number of Metric Pitches 73(53 Inches) Range of Metric Pitches 0.35 – 80mm Number of Module Pitches 45(66 inch) Range of Module Pitches 0.2 – 40 MOD Longitudinal rapid travelling speed 4 m/min Transverse rapid trav |
Zebra Worldwide Machinery Limited 68 Glover StB9 4EL BirminghamUnited Kingdom SHOW |
