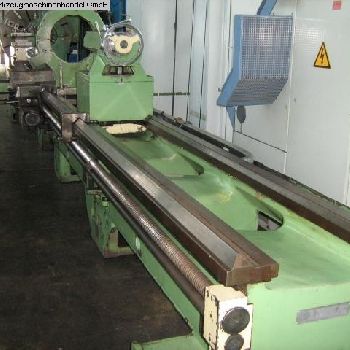

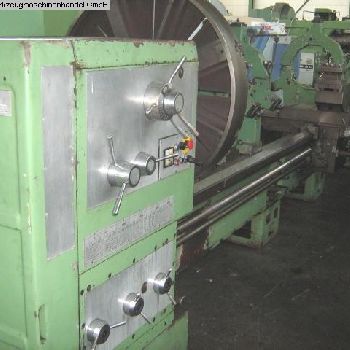

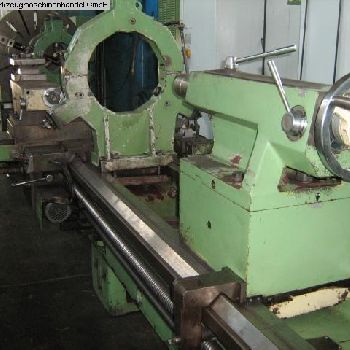

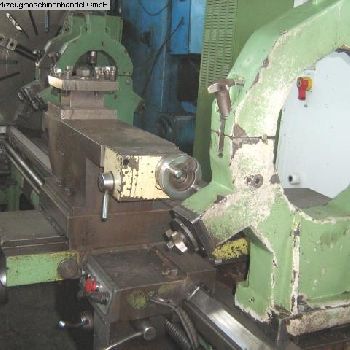

SARO SPA 10
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Bühl | Baden-Württemberg |
| Category: | Center Lathes |
| Manufacturer: | SARO |
| Model: | SPA 10 |
| Year of Make: | 1989 |
| Description: | warehouse number 1052-04270 category Guide and drawbar turning machine make SARO Type SPA 10 Construction year 1989 control conventional storage location D - 77815 Bühl country of origin Romania delivery time immediately Quotation from stock, free loaded trucks price on demand; Technical details Turning diameter over bed 1020 mm Turning diameter over support 620 mm turning length 6000 mm Center height 510 mm Turning diameter in the bend 1250 mm spindle hole 105 mm Speed range 8-1250 rpm Feeds - longitudinal 0.056 - 10 mm / rev Feed - plan 0.0186 - 3.33 mm / rev thread dimensions 1 - 176 mm Thread - inch 1/32 - 10 inch. Threaded module 0.5 - 80 Planschlittenweg 500 mm Oberschlittenweg 250 mm tailstock 100 mm tailstock quill stroke 300 mm Tailstock mount MK 6 Workpiece weight between centers max. 2500 kg Workpiece weight in the jigs max. 3500 kg Total power requirement 22.7 kW Machine weight approx. 9.3 t machine dimensions |
Hans Klein Werkzeugmaschinen-Handel GmbH Im Mühlgut 2-477815 Bühl-WeitenungGermany SHOW | |
