GMM EURA 35 TS
$ 24,850
| Type: | Buy-It-Now |
| Location: | United States | Rhode Island |
| Category: | Stone Processing Machinery |
| Manufacturer: | TS |
| Model: | EURA 35 TS |
| Year of Make: | 1997 |

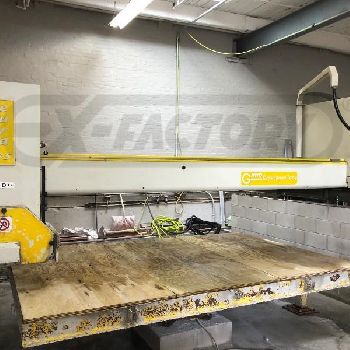

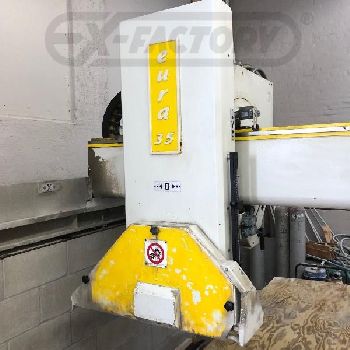

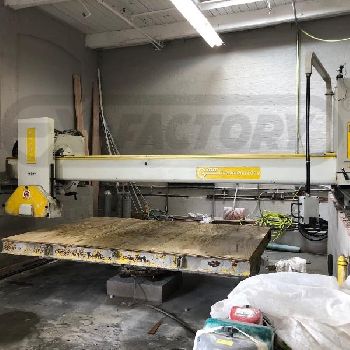

| Description: | GMM EURA 35 Bridge Saw: Blade Capacity, 16" dia. blade installed; 8" max. Depth of cut with 24" Blade. GMM EURA Specs: \n\n-- 16.5 kW (22 HP) motor can push up to a 24" blade at 1,750 RPM at 60 Hz. \n\n-- Table Rotates 360° with positive stops at 0°, 45°, 90°, and 135° \n\n-- Laser light for manual setup. Axis Travel & Capacity: \n\n-- X-Axis: Powered by 2 HP Drive with rack & pinion moves the blade perpendicular to the direction of cut. 137" (3,500 mm) of travel. Variable Speed Drive from 0 - 18 m/Min (59 FPM). \n\n-- Y-Axis: Powered by 1.3 HP Drive with rack & pinion moves the blade with the direction of cut, 137" (3,500 mm) of travel. Variable Speed Drive from 0 -18 m/Min. \n\n-- Z-Axis: Powered by servo drive with ball screw moves the blade vertically, 12.5" (320 mm) of travel. \n\n-- W-Axis can be used to tilt the blade manually up to 60°. |
