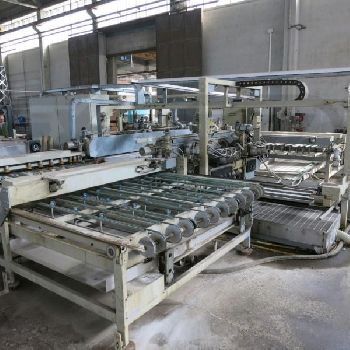

BOTTERO TITAN 220N
$ 48,209
| Type: | Buy-It-Now |
| Location: | Lithuania | Paris |
| Category: | Glass |
| Manufacturer: | Bottero |
| Model: | TITAN 220N |
| Year of Make: | 2000 |
| Description: | BOTTERO TITAN 220N Double Edge Grinder For Flat Glass Classic Double Edger designed for fabricators who need to produce large quantities of glass with precise orthogonality, which vertical machines are not able to offer. Its configuration has, on each side, (3) diamond wheels and (3) polishing wheels for flat edge and (2) diamond wheels and (2) polishing wheels for threads. The Double Edger's range enables the processing of flat edge, of threads and the removal of the edge. Wheel configuration (20 per cup): 3 + 3 diamond for edge (φ150 mm) 1 + 1 diam. upper thread (φ130 mm) 1 + 1 diam. lower thread (φ130 mm) 1 + 1 polish upper thread (φ130 mm) 1 + 1 polish lower thread (φ130 mm) 3 + 3 polishing for edge (φ150 mm) Specifications: \n\n-- Max. glass size: 2000 x 3000 mm \n\n-- Min. glass size: 160 x 160 mm (6.3" x 6.3") \n\n-- Glass thickness: 3 - 30 mm (1/16" - 1-1/4") \n\n-- Speed: 0.1 - 10 m/Min (33 FPM) \n\n-- Polishing degree: Optimal Shine \n\n-- Worktable height: 950 mm \n\n-- Weig |
