BOTTERO VISION 910P
$ 14,500
| Type: | Buy-It-Now |
| Location: | United States | Southeast | Connecticut |
| Category: | Glass |
| Manufacturer: | Bottero |
| Model: | VISION 910P |
| Year of Make: | 1999 |

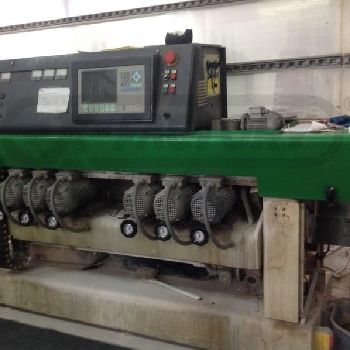

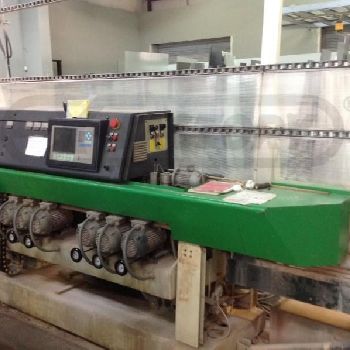

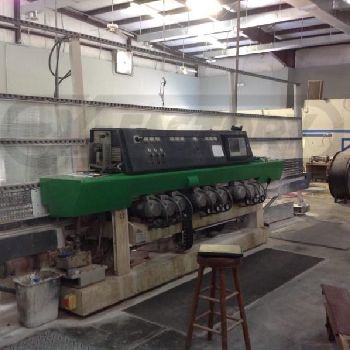

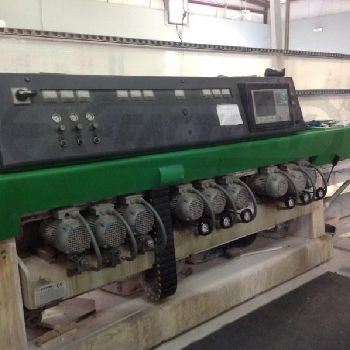

| Description: | BOTTERO Vision 910P Straight-Line Glass Beveler (11) Wheel (Spindles) edging machine for bevel and pencil edge processing. It allows the whoie profile (bevel and pencil edge) to be obtained in one single pass. Suitable for bevel width up to 60 mm (2-3/8"). The main movements of the machine are controlled by SIEMENS PLC. Wheel configuration: (3) Diamond wheels for bevelling (1) Stone wheel for the front arris [910B Option] (1) Peripheral wheel for pencil edge [910P Option] (3) Resin wheels for bevelling (3) Felt wheels for bevel polishing with cerium Specifications: \n\n-- Feed: 0.35 - 5.4 m/Min (18 FPM) \n\n-- Min. Glass measure: 40 x 40 mm (1.5" x 1.5") \n\n-- Glass thickness: 2 - 30 mm (1-1/4") \n\n-- Working height: 825 mm (32-1/2") \n\n-- Overall dimensions: 7,900 x 1,200 x 2,900 mm (311" x 48" x 115") \n\n-- Weight: 4,100 kG (9,020 Lbs) NOTE: Machine is currently under power & operational. Ready for immediate delivery. |
