SAC F / 6
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Belgium | Kortrijk | Vlaanderen |
| Category: | Window / Door Manufacturing |
| Manufacturer: | SAC |
| Year of Make: | 1988 |

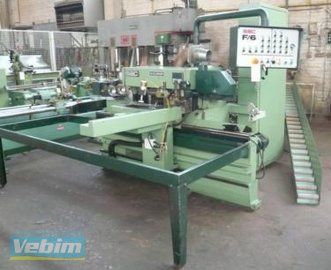

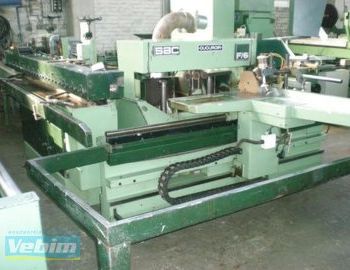

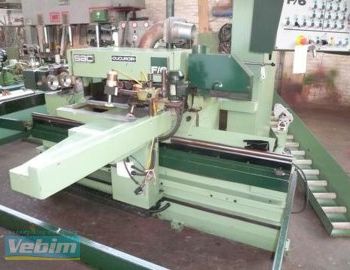

| Description: | SAC F / 6 Raamcenter in corner arrangement with automatic return of the workpiece Length of the workpieces, min / max: 280 mm / 2600 mm. Width of the workpieces, min / max: 20 mm / 300 mm Thickness of the workpieces, min / max: 20 mm / 100 mm Supply of the pin carriage with motor 0.75 kW Flow rate variable: 3 to 20 m / min Supply of the workpieces in the profiling zone with motor 0.75 kW Flow rate variable: 3 to 20 m / min. Number and diameter of the feed rollers in the profiling zone: 14/145 mm. Hydraulic motor for the shaft positioning, 0.75 kW Automatic return to the operator Equipment: -Fully saw: Motor 3 kW, 3000 R / min Shaft with 30 mm diameter Saw blade with 400 mm diameter Horizontal adjustment of the saw blade over 100 mm Revolving stops for the horizontal adjustment: 16 -2 shafts for striking the pins: Number of programmable positions on both shafts: 4 Motor power per axle: 11 kW, 3000 R / min Diameter and length of shafts: 50 mm / 320 mm. Vertical course of the axles: 255 m |
