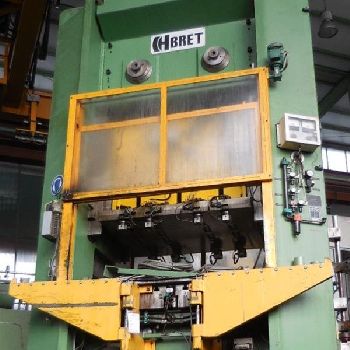

Double Column Press - mechanical BRET 2 PACK 25 B
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Double Column Presses |
| Manufacturer: | Bliss Bret |
| Model: | 2 PACK 25 B |
| Year of Make: | 1994 |
| Description: | Pressure 250 t distance between columns 1650 mm stroke fix 150 mm no. of strokes 30 - 75 /min distance table/ram, max. stroke up, adjustment up 665 mm distance (without tool changing system on ram) 765 mm Distance between guideways 1400 mm table surface area 1600 x 900 mm Hole in the table 1000 x 300 mm table height over floor 980 mm side window 550 mm ram surface 1400 x 900 mm ram adjustment 100 mm Material width of feeder 500 mm Material thickness feeder 0,5 - 2,8 mm material cross-cut 1200 mm² power requirement 42,0 kW weight 33,0 t Dimensions (WxDxH) 2,8 x 2,5 x 4,4 m overload protection in ram hydraulic clutch-/ brake combination Ortlinghaus tool changing system roll feed electronic, AESL 500-2,8 |
