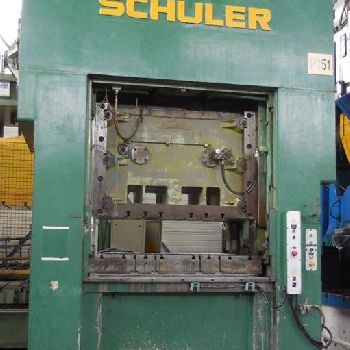

Double Column Press - mechanical SCHULER SA 250
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Double Column Presses |
| Manufacturer: | Schuler |
| Model: | SA 250 |
| Year of Make: | 1978 |
| Description: | Pressure 250 t stroke 30 mm no. of strokes 60 - 500 /min Distance between columns 1500 mm distance table/ram, max. stroke up, adjustment up 390 mm table surface area 1580 x 1100 mm hole in the table 1270 x 300 mm table height over floor 1470 mm side window 600 mm ram surface 1500 x 900 mm ram adjustment 100 mm material width 500 mm material thickness 0,5 - 1,5 mm coil weight 6,5 t coil internal diameter 420 - 560 mm coil external diameter 1500 mm no. of straightening rolls straightening roll diameter mm power capacity 45,0 kW Weight 44,0 t Dimensions (WxDxH) 3,3 x 1,8 x 4,5 m German Safety: permitted for automatic mode frequency controlled drive clutch pneumatisch ram adjustment motorisch double decoiler LH 2-1,5-500 straightening machine R 500 roll feed mechanisch; Schuler, WK 8-500 |
Schuler Pressen GmbH Werk Göppingen Marketing Frau Baur Postfach 80055299031 ErfurtGermany SHOW |
