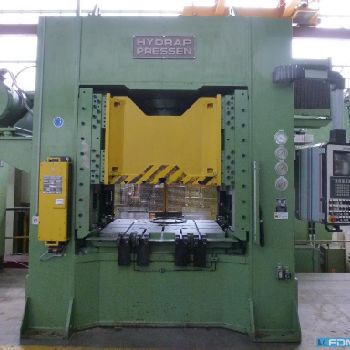

Hydraulic Double-Column (Drawing) Press HYDRAP HPDZB 200 (UVV)
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Double Column Presses |
| Manufacturer: | Hydrap |
| Model: | HPDZB 200 (UVV) |
| Year of Make: | 1990 |
| Description: | pressure 200 t distance between columns 1400 mm stroke 300 mm distance table/ram, max. stroke up, adjustment up 500 mm table surface area 1300 x 1100 mm pressure of drawing cushion in table 80 t stroke of drawing cushion in table 150 mm die cushion area 700 x 700 mm capacity of ejector in ram 10 t ejector stroke in ram 50 mm table height over floor 930 mm side window 770 mm ram surface 1300 x 1100 mm speed down 400 mm/s speed up 410 mm/s working speed 20 - 50 mm/s return capacity 30 t oil volume 1350 l power requirement 70,0 kW weight 23,0 t dimensions (WxDxH) 4,5 x 3,0 x 3,5 m German Safety: permitted for manual loading UVV 11.064 - VBG 7n5.2 drawing cushion in table hydraulic ejector in ram hydraulic cutting impact cushioning foundation pit not necessary |
