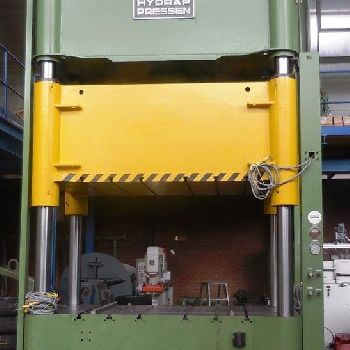

Hydraulic Double-Column (Drawing) Press HYDRAP HPD-S 125 (UVV)
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Double Column Presses |
| Manufacturer: | Hydrap |
| Model: | HPD-S 125 (UVV) |
| Year of Make: | 1991 |
| Description: | pressure 125 t distance between columns 2100 mm stroke 1000 mm Distance table/ram, max. stroke up, adjustment up 1300 mm Table area 2230 x 1300 mm die cushion pressure in table 63 t die cushion stroke in table 60 mm surface of drawing cushion 1000 x 900 mm table height above floor 1050 mm side window 1000 mm ram surface 2100 x 1000 mm speed down 50 mm/s speed up 50 mm/s working speed 10 mm/s oil volume 410 l height above floor 5,95 mm power requirement 22,0 kW Weight 31,0 t Dimensions (WxDxH) 3,1 x 1,7 x 5,95 m German Safety: permitted for manual loading UVV 11.064 - VBG 7n5.2 drawing cushion in table hydraulic ram interlocking controllable dependant on pressure/time and way two-hand operation foundation pit not necessary |
