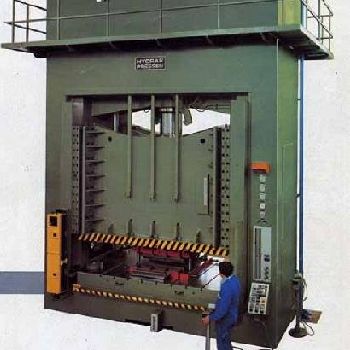

Hydraulic Double-Column (Drawing) Press HYDRAP HPDZB 400 (UVV)
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Double Column Presses |
| Manufacturer: | Hydrap |
| Model: | HPDZB 400 (UVV) |
| Year of Make: | 1980 |
| Description: | pressure 400 t distance between columns 3250 mm distance table/ram, max. stroke up, adjustment up 1000 mm stroke 800 mm table surface area 3250 x 1400 mm table height over floor 1250 mm die cushion capacity 170 t die cushion stroke 200 mm die cushion area 1800 x 1000 mm distance between cutting impact cushioning 2610 mm side window 800 mm ram surface 3250 x 1400 mm return capacity 51 t speed down 300 mm/s speed up 300 mm/s working speed 16 - 33 mm/s quantity of oil 2900 l power requirement 100,0 kW weight 70,0 t Dimensions (WxDxH) 4,9 x 3,1 x 7,6 m German Safety: permitted for manual loading UVV 11.064 - VBG 7n5.2 cutting impact absorption hydraulic two-hand operation |
