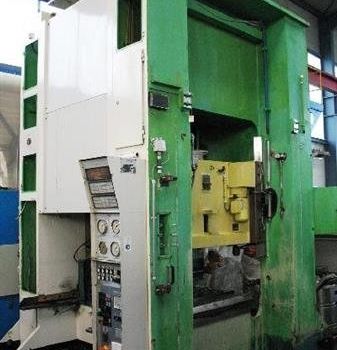

Hydraulic Double-Column (Drawing) Press SMG HZPU 500 (UVV)
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Double Column Presses |
| Manufacturer: | SMG |
| Model: | HZPU 500 (UVV) |
| Year of Make: | 1978 |
| Description: | Pressure 500 t distance between columns 1550 mm stroke 600 mm distance table/ram, max. stroke up, adjustment up 900 mm table surface area 1200 x 1300 mm pressure of drawing cushion in table 250 t stroke of drawing cushion in table 150 mm die cushion area 950 x 950 mm table height over floor 1245 mm side window 1250 mm ram surface 1200 x 1300 mm speed down 750 mm/s speed up 780 mm/s working speed 105 mm/s oil volume 4000 l height over floor 6,1 m power requirement 263,0 kW weight 45,0 t Dimensions (WxDxH) 3,3 x 3,3 x 6,1 m German Safety: permitted for manual loading UVV 11.064 - VBG 7n5.2 drawing cushion in table hydraulic ram interlocking cutting impact cushioning motoric adjustable depth stop |
Schuler Pressen GmbH Werk Göppingen Marketing Frau Baur Postfach 80055299031 ErfurtGermany SHOW |
