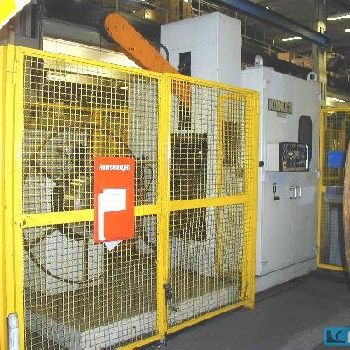

coil line KOHLER 50.400/9.3000.1 H WVE 160/400
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Further Handling Devices |
| Manufacturer: | Köhler |
| Model: | 50.400/9.3000.1 H WVE 160/400 |
| Year of Make: | 1992 |
| Description: | material width 400 mm coil weight 3,0 t material thickness 0,5 - 4,0 mm coil internal diameter 460 - 530 mm coil external diameter 1500 mm no. of straightening rolls 9 straightening roll diameter 50 mm no. of lower support rolls 12 no. of upper support rolls 10 diameter of support rolls 90 mm material cross-cut 1600 mm² speed of coil line 0 - 20 m/min power requirement 35,0 kW weight 10,5 t dimensions (WxDxH) 10,0 x 2,5 x 2,9 m straightening machine KRE 50.400/9 driven straightening rolls adjustment of straightening rolls motoric quick changing of the rolls insertion wedge hydraulic adjustable decoiler 3000.1 snubber roll hydraulic expansion hydraulic sideway adjustment motoric pivoting manual roll feed Servo; WVE 160/400 intermittant lifting hydraulic |
