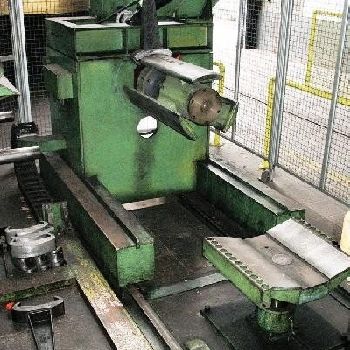

decoiler straightening machine SCHLEICHER RMS 8-53/160-800 / HE 200-1000
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Levelers |
| Manufacturer: | Schleicher |
| Model: | RMS 8-53/160-800 / HE 200-1000 |
| Year of Make: | 1987 |
| Description: | material width 800 mm coil weight 12,0 t coil internal diameter 470 - 520 mm coil external diameter 1500 mm material thickness 0,4 - 2,5 mm no. of straightening rolls 8 straightening roll diameter 53 mm number of draw-in rolls 2 inlet roll diameter 160 mm speed 35 m/min material thickness at 150 mm material width 2,5 mm material thickness at 650 mm material width 1,5 mm material thickness at 800 mm material width 1,0 mm power requirement kW weight t dimensions straightener (WxDxH) mm dimensions decoiler (WxDxH) mm straightening machine RM 8-53/160-800 infinitely variable drive hydraulic threading wedge side guidance at the inlet decoiler HE 200-1000 auxiliary drive lag brake hydraulic snubber roll hydraulic expansion motoric movable hydraulic coil lifting device coil loof control |
