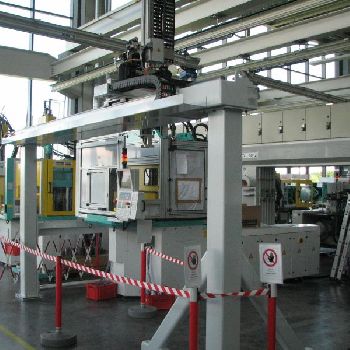

Arburg Robotsystem 1200 T 1500 T CNC 3 axes servo
$ 7,750
| Type: | Buy-It-Now |
| Location: | Germany | Hildesheim |
| Category: | Robots |
| Manufacturer: | Arburg |
| Model: | Arburg Robotsystem 1200 T 1500 T CNC 3 Achsen Servo |
| Year of Make: | 2007 |
| Description: | Operating hours (h): 3500 | Throughput (kg / h): k.A. | Power (kW): k.A. ARBURG Robotic system in cantilever construction, 3 CNC axes, freely programmable, axes simultaneously mobile Drive via servo motors Axle length in mm: X axis 4000 mm Y axis 800 mm Z axis 1100 mm Year of construction 2007 little used Suitable for T1200 and T1500 Arburg Selogica Equipment: Special support for mounting on rotary table ALLROUNDER 1500 T / 1200 T Load 25 kg B axis (mounting between immersion and C axis) - Swivel range 0 ° to 180 ° - Drive servo-electric, positions freely programmable - Nominal torque: 60 Nm - Max , Speed: 90 degrees / s - Weight: 5.5 kg Control unit SELOGICA for controlling the robot system - Separate control cabinet with connection cable Software configuration Extended basic program MULTILIFT V (as soon as the gripper is in the WKZ area, a programmable sequence is activated when the basic program is activated (not all enumerated) 16 freely programmable inputs and outputs for gripper |
