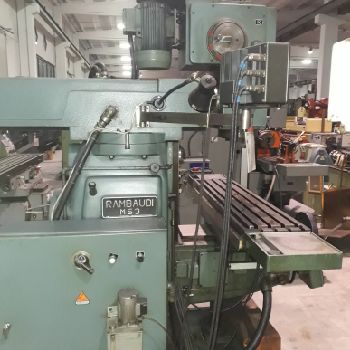

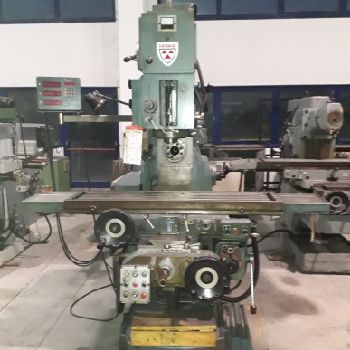

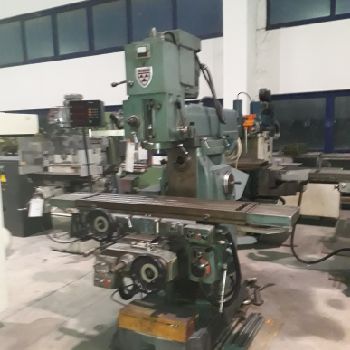

RAMBAUDI MS 3 milling machines
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy | Montichiari | Lombardia |
| Category: | Milling Machines |
| Manufacturer: | Rambaudi |
| Description: | Working surface mm. 1300x300 | No. of Advances No. 12 | Transversal and long advances. mm / min 12 ÷ 550 | Vertical advances mm / min 6 ÷ 275 | Fast advances long. and trasv. mm / min 2000 | Fast forward vert. mm / min 1000 | Longitudinal travel X mm. 950 | Cross travel Y mm. 280 | Vertical stroke Z mm. 415 | Stroke mm 550 mm Spindle axis distance - table mm 65 ÷ 510 | Spindle cone ISO 40 | Spindle travel mm 125 | Rotation of the ram in the horizontal plane Degrees 360 ° | Spindle speed No. 18 | Speed / RPM range 40 ÷ 3500 | Vertical spindle power KW 4 | Spindle cone ISO 50 | Max diameter of the drill mm 300 | N.18 rotation speed RPM 25 ÷ 1500 | Approximate weight Kg 2400 | Dimensions 1.8x1.4x2.2 meters |
EURO MACHINE TOOLS srl Via Louis Bleriot n.5/7/925018 MontichiariItaly SHOW |
