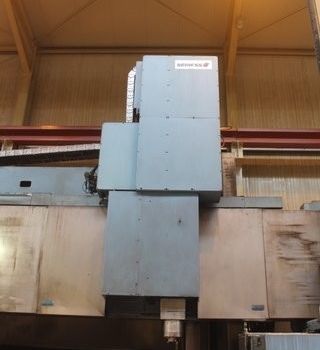

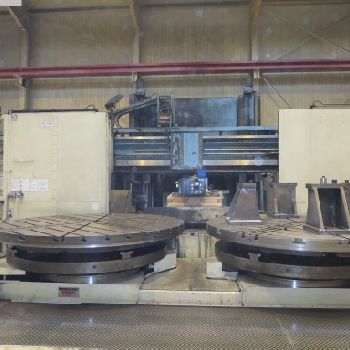

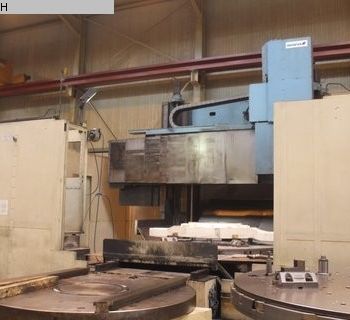

Portal milling machine SCHIESS VMG 4
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Mülheim an der Ruhr | Bayern |
| Category: | Planer Type Milling Machines |
| Manufacturer: | Schiess |
| Model: | VMG 4 |
| Year of Make: | 2002 |

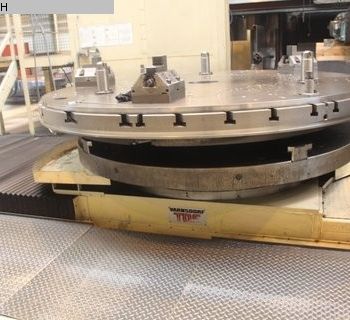

| Description: | Max. Turning and rotation diameter 3200 mm Port throughput width 3000 mm max. Machining / workpiece height 2500 mm max. Workpiece weight 25 t Diameter of the machine clamping station 3000 mm Number of integrated clamping slides 4 pcs. Speed infinitely variable - for turning 0,50 ... 180 rpm Speed infinitely variable - for milling processing 0.0004 ... 4 rpm max. Torque on the face plate 75 kNm Main drive power 110 kW Horizontal adjustment of the support 1900 mm from center to left Horizontal adjustment of the support 2800 mm from center to right Horizontal guide length of the support 1000 mm Prism height of the support guide 1000 mm Vertical adjustment of the chisel slide 1400 mm guide length Of the chisel slide 1200 mm cross section of the chisel slide 280 x 240 mm cutting force for turning 50 kN smallest immersion diameter 375 mm drilling and milling device. Power 1,4-52-52 kW. Spindle speed stage 1 5-180-520 rpm Step 2 30-1100-3150 rpm. Torque at the spindle stage 1 2400-2400-85 |
