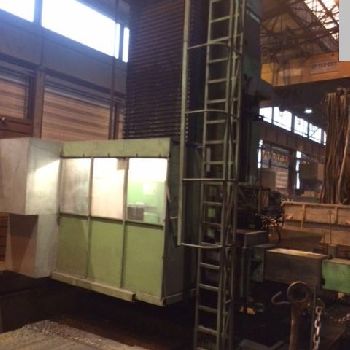

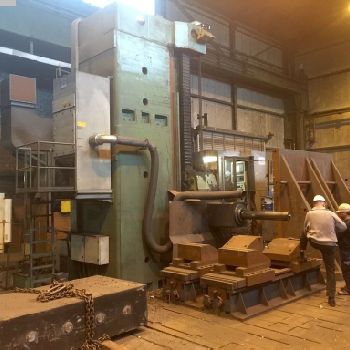

Supporting sleeve TITAN-PAMA AFP 200
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Mülheim an der Ruhr | Bayern |
| Category: | Floor Type Boring Mills |
| Manufacturer: | Titan Maschinen GmbH |
| Model: | AFP 200 |
| Year of Make: | 2008 |

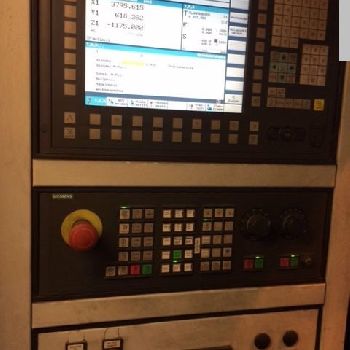

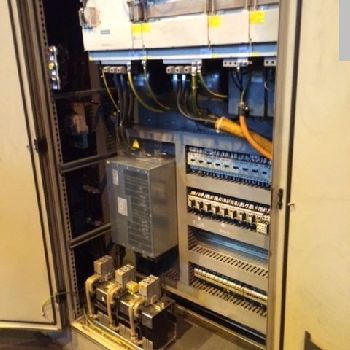

| Description: | Spindle diameter: 203.2 mm x-travel: 9000 mm y-travel: 4000 mm z-travel: Ram 1200 mm V-axis: 2000 mm w-axis: quill 800 mm distance Working spindle / clamping surface max .: 3500 mm Tool fixture: Iso 60 Torque at the spindle: 25000 Nm Carrying sleeve dimension: 450 x 550 mm Spindle speed range: 0,8 - 660 rpm Main motor: 60 spindle kW Traveling speeds in all linear axes: 6000 mm / min. Power consumption: 240 kVA Control: Siemens 840 D Plate size: 3 x 2000 x 3000 x300 mm Total power requirement: approx. 60 kW Machine weight ca.:180 t Dimensions L x W x H: 18 x 6 x 10.6 m Machine was modernized in 2008 on Siemens 840 D equipped with new control cabinet and new motors |
