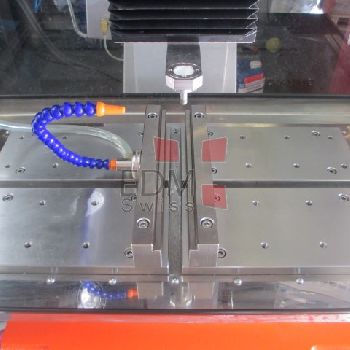

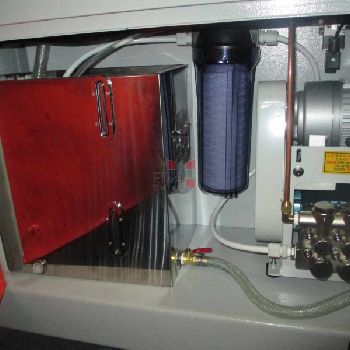

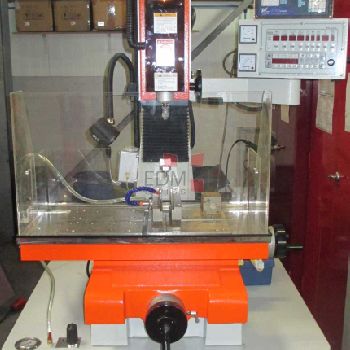

EDMdrill M3 Drilling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Switzerland | Meyrin | Genève |
| Category: | Further EDM Machines |
| Model: | Technical Specifications EDMdrill M3 |
| Description: | Technical Specifications EDMdrill M3 Technical Specifications EDMdrill M3; Table travel (X,Y axes) 350x250x mm; Work table size 600x300 mm; Z axis travel 350 mm; W axis travel 200 mm; The maximum height 330 mm; Max. workplace weight 250 kg; Power input According to local voltage; Max. average 32 Amps; Power capacity 3.8 KVA; Electrode diameter 0.1 - 3.0 mm; Machine net weight 800 kg; Depth/Width/Height 1100x1200x2100 mm |
