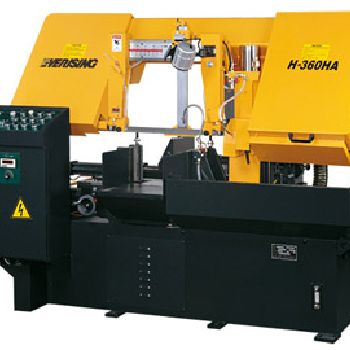

Bandsägeautomat - Horizontal Everising H360-HA
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Erwitte |
| Category: | Automatic Band Saws |
| Manufacturer: | Everising |
| Model: | H360-HA |
| Year of Make: | 2018 |
| Description: | Horizontal CNC Bandsägevollautomat in 2 columns execution Fabr. Everising (Taiwan) factory Everising fully automatic machines are designed for the uncompromising use in production. With a full CNC control and a Visual Dialog control system, these fully automatic machines are easy to use and convince through outstanding cutting performance. SPECIFICATIONS Cutting capacity round 360 mm rectangular 360 x 360 mm motor power capstan 3.7 KW motor power hydraulic 1.5 KW motor power coolant pump 0.1 KW motor power cleaning brush 0.1 KW Saw band 4420 x 34 x 1.1 mm blade speed 20-100 m / min continuously space 2500 x 220 mm Weight 2000 kg Specifications material feed feed length 500 mm multiple feed 9 x 500 mm STANDARD EQUIPMENT Massive steel structure in double-column principle NC feed system frequency controlled cutting speed (continuously controlled. inverter) Digital cutting speed display hydraulically opening double horizontal vices Hydraulic biased blade tension saw belt (incl. tape back g |
