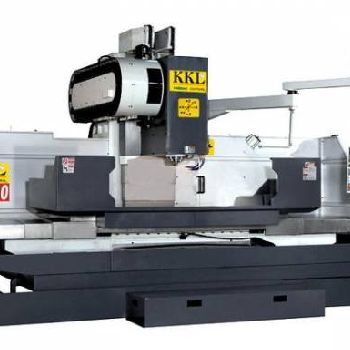

Machining Center - Vertical made in Taiwan SV-2200
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Erwitte |
| Category: | Vertical Machining Centers |
| Manufacturer: | YOU JI |
| Model: | SV-2200 |
| Description: | Factory new vertical machining center Country Taiwan Type SV-2200 with CNC contouring control Mitsubishi M70-2A, precision surface led. SPECIFICATIONS Table size 2120 x 900 mm Travel X, Y, Z 2200 x 950 x 750 mm (Opt. Z = 900 mm) drive power spindle motor 18.5 kW output axis motors X, Y, Z 4.5 / 4.5 / 4.5 KW tool holder BT 50 spindle speed 60 - 6000 U / min tool changer 24 fold machine weight 19500 kg eQUIPMENT and Standard Accessories 4 Flachfuehrungen in the Y axis CE Conforming tapping without compensating chuck 8.4 inch LCD color monitor air through the spindle Preloaded ballscrews in all 3 axes tempered precision Flachfuehrungen for all axes high cutting performance RS 232 cabinet air conditioner will chip conveyor screw shape Spaene flushing Spaene spray gun (air / water) warm air 3-color work light waterproof work room housing / full splash protection standard tool in suitcase Simple oil-water separator Automatic central lubrication for all axes 380 volt transformer oil mist extr |
