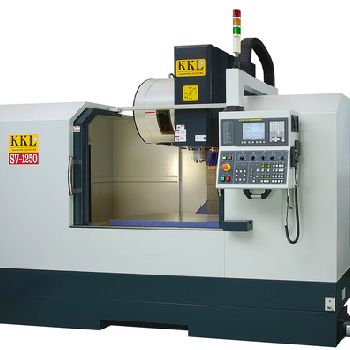

Machining Center - Vertical made in Taiwan SV-1250
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Erwitte |
| Category: | Vertical Machining Centers |
| Manufacturer: | YOU JI |
| Model: | SV-1250 |
| Description: | Factory new vertical machining center Country Taiwan Type SV-1250 with CNC contouring control Mitsubishi M70-2A, or other hardened and precision flat guides in 3 axes. SPECIFICATIONS Table size 1320 x 600 mm Travel X, Y, Z 1250 x 625 x 625 Distance table - spindle nose 120? 745 mm distance stand - spindle nose 660 mm Max table load 1295 kg Engine power spindle motor 7.5 / 11.0 KW / optional 11/15 kW output axis motors X, Y, Z 3.5 / 3.5 / 3.5 KW Tool fixture BT-40 / optional BT50 spindle speed 65 -. 8000 U / min feed range 1 - 10000 mm / min rapid traverse in X, Y, Z 20/20/18 m / min tool changer 20 times / optional 24 Maximum tool diameter 90/150 mm machine weight 8400 kg FEATURES AND STANDARD ACCESSORIES transformer for 380 volt 4 boxways in the Y axis CE conformity tapping without compensating chuck 8.4 inch LCD / MDI air through the spindle Preloaded precision ballscrews in all 3 axes Hardened precision flat guides in all axes for high cutting RS 232 cabinet air conditioner chip con |
