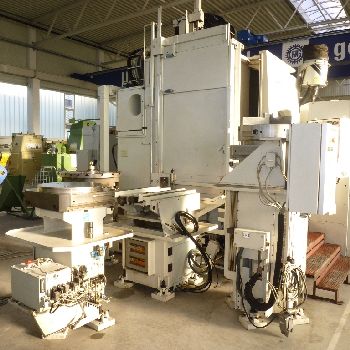

PITTLER PV 1250 / 1-1
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Metzingen | Baden-Württemberg |
| Category: | Lathes |
| Manufacturer: | Pittler |
| Model: | MICROFOR3-NC2 |
| Year of Make: | 1979 |
| Description: | • CNC 3-track controlNUM 760 TX with graphics, menu-driven dialog programming and all common options, cycles and subroutineswith tool compensation, tapping cycle, V-constant programming etc. • 2-axis CNC tool carriage (1.300x800 mm) with driven tool holder ISO 50 / 22kW • Tool changer with 16 tool holders (maximum length 450 mm, maximum 40 kg) • Pallet changing system (pallet 630 x 630 mm) with one set-up station with indexing and drive of the pallet and 2 separate pallet stations • 3 pallets 630 x 630 mm, 3 jaws Chuck Ø 650 mm, faceplate Ø 900 mm • Chip conveyor, belt filter coolant device, complete enclosure (including protective fence for pallet changing area, separate control cabinet, operating instructions • approx. 20 tool holders and various other accessories Powerful, universal turning and milling center for complete machining (turning, drilling, milling, Threads) with high speeds and high chip volume! nd good to very good - shortly ready for demonstration Delivery from stock - |
Hans-Jürgen Geiger Maschinen-Vertrieb GmbH James-Watt-Straße 12D-72555 MetzingenGermany SHOW |
